Abstract

My main work machine is connected by ethernet to my home router which itself is in the opposite end of my residence. Because I only have this one ethernet line to the gateway, when provisioning new machines or experimenting with new distros I often just connect the subject machine into my multi-homed it has 3 ethernet ports work machine, like so...
I                ROUTER                           WORKSTATION
N           +--------------+                    +--------------+
T           |              |  LAN1              |              |                           SUBJECT
E    WAN    |    192.168.0.1<-------> (enp0s31f6)192.168.0.102 |                        +------------+
R <=======> |              |                    |              |           LAN2         |            |
N           |              |                    |      10.0.0.1(enp13s0) <-------> (eno1)10.0.0.2    |
E           |              |                    |              |                        |            |
T           +--------------+                    +--------------+                        +------------+
Spot the (multiple) problems here?

SUBJECT can't reach the 'Net. In fact, it's worse: because private network addresses aren't intended to be routed, the router serving 192.168.0.0/24 quite properly won't even respond to pings from SUBJECT inside 10.0.0.0/24. Without attention to normally ignored configuration details SUBJECT is an island.

Solution

Just as ROUTER is a gateway to the Internet to WORKSTATION, WORKSTATION is effectively a gateway to SUBJECT, so one must:
  1. Configure ethernet interfaces on WORKSTATION and SUBJECT
  2. Insure WORKSTATION is willing to route.
  3. Configure WORKSTATION to do NAT.
  4. Insure nothing else is in blocking or dropping packets.

Local configuration on...

WORKSTATION

WORKSTATION's enp0s31f6 has presumably been configured by ROUTER's DHCP.

There is nothing (no DHCP) on 10.0.0.0/24 to service enp13s0, so it needs a static configuration:

iface enp13s0 inet static
	address 10.0.0.1/24
...to /etc/network/interfaces and issue...
sudo ifup enp13s0
And possibly add "auto enp13s0" to the interfaces file if you want it brought up all the time automatically.

SUBJECT

I sometimes run the easily-configured dnsmasq on WORKSTATION and insure its configuration includes...
interface=enp13s0
...so it only pays attentions to queries arriving on the secondary (enp13s0) ethernet port. This way dhcpcd (which is part of most distros' installers) on SUBJECT gets its configuration automatically on boot, but, as simple as dnsmasq is, that's still more configuration!

So sometimes I just `sv stop dhcpcd` and use the ip tool to slam a static configuration into SUBJECT.

ip address add 10.0.0.2 dev eno1
ip route add default via 10.0.0.1 dev eno1
ip address del 169.254.x.x/16 dev eno1
...and an editor to paste...
nameserver 75.75.75.75
...into /etc/resolve.conf.

If SUBJECT is ever fully setup and moved elsewhere on my network it will get its address, default route, and nameserver from whatever is providing DHCP to that network.

Routing

Packet forwarding (the essence of routing) is normally turned off in desktop installations since they are usually terminii in the network. Turning it on is simple. As root or a sudoer:

sysctl -w net.ipv4.ip_forward=1
Alternatively, edit the same entry in /etc/sysctl.conf and issue...
sysctl -p
...to reload. Obviously, editing sysctl.conf is a permanent (until you change it back) approach.

NAT

The preceding will get pings from 10.0.0.2 to the router, but the router still won't respond.

Host WORKSTATION needs to do source network address translation (NAT). Using the (newer) nft interface to the kernel packet handling stack...

nft add table nat
nft 'add chain nat postrouting { type nat hook postrouting priority 100; }'
nft add rule nat postrouting ip saddr 10.0.0.0/24 oif enp0s31f6 snat to 192.168.0.102
nft list ruleset
Replace "enp0s31f6" and the IP addresses with your own! That last line isn't required; it just shows how you have configured the kernel:
table ip nat {
	chain postrouting {
		type nat hook postrouting priority srcnat; policy accept;
		ip saddr 10.0.0.0/24 oif "enp0s31f6" snat to 192.168.0.102
	}
}
You should now be able to ping the router from SUBJECT.

No?

  1. Do you have a firewall installed on any of the three machines?
    1. Is it turned on?
    2. Is it configured to disallow some part of routing?
  2. Is the ethernet cable...
    1. ...plugged in? Seriously!
    2. ...plugged in to the correct jack?
    3. Is the cable good?
I'm not going into firewall configuration here, but it's something to be aware of.

Want to see what you hath wrought?

As root or sudoer issue...

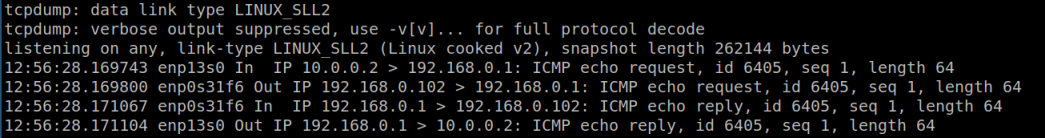

tcpdump -i any -n
...on WORKSTATION and watch the 4-part dance of a ping.
